10A 1 Pole Miniature Circuit Breaker C Curve

UL489 Certified: Meets National Electrical Code standards to serve as primary thermal overload and short circuit protection. Approved by Underwriters Laboratories for Branch Circuit protection in US and Canada. UL File: E517928

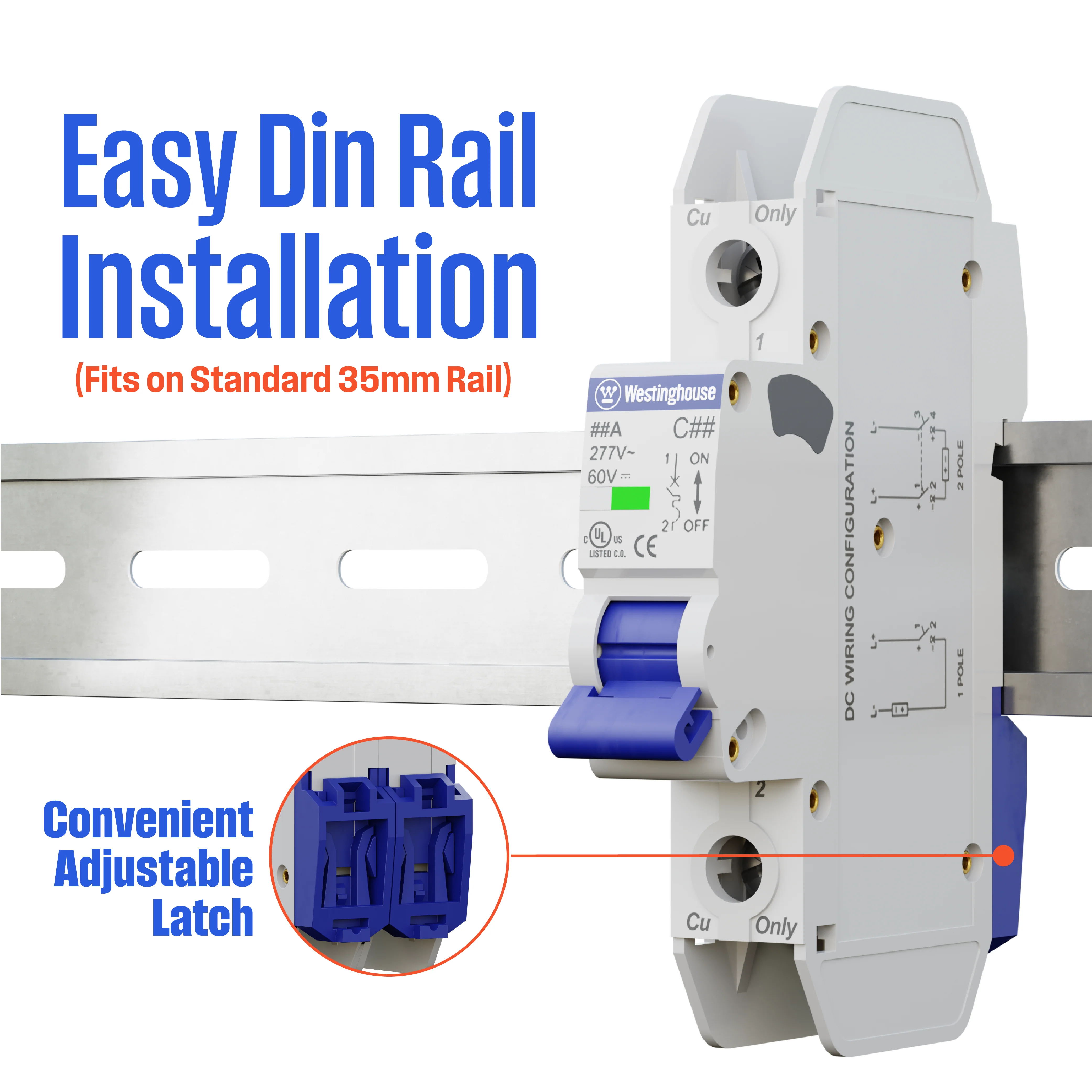

Standard Installation: Mini Circuit Breaker snaps on 35mm DIN Rails or may be directly mounted to control panels. Typically used in motor control circuits, HVAC / HVACR Equipment, input output module protection for programmable logical controllers (PLC) and distributed control systems (DCS), relays and instrumentation among other applications.



Specifications: 10 Amp 1 pole C Trip Curve MCB rated for 10kAIC 277V AC. Direct current rating is 60V DC. Westinghouse Model Number: WMBB1C10.



Current Limiting: Westinghouse MCBs are designed to interrupt within the first half AC cycle compared to 1 to 2 AC cycles for conventional breakers.

What’s Included: Single Pole Miniature Circuit Breaker only. DIN Rail and Installation Kit sold separately.
